Easy Project, Habitats

Bantam V2 Isopod MINI Tank

Create the perfect environment for culturing or displaying your favorite invertebrate species with the B-V2 Isopod Terrarium Kit! This modular, multi-part kit provides all the structural components needed to build a fully enclosed breeding or display habitat optimized for isopods (roly polies) and other terrestrial microfauna.

The design ensures excellent substrate depth and controlled ventilation. This support-free kit requires Max Strength Construction Adhesive and acrylic glass tubing for final assembly, resulting in a durable, stackable, and fully functional display or cultivation unit.

Download This STL File

(Non-Commercial License)

—– OR —–

Memberships starting at $14/month

-Unlimited Downloads

-Commercial License Available

-Cancel Anytime

_
Get Unlimited Downloads

Share This Design:

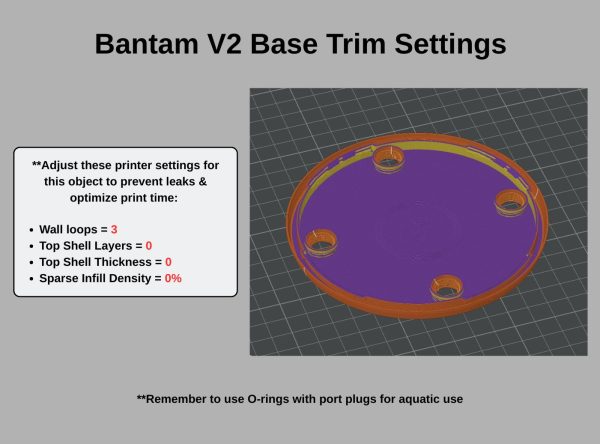

Recommended Settings

Assembly & Installation

Changelog

Recommended Settings

⚙️ Recommended Print Settings

This kit uses several structural components. Dimensional accuracy for assembly and material choice for safety are crucial.

FDM/Filament Settings (Recommended for Structure & Size)

Material: PETG or ABS/ASA is strongly recommended for structural integrity, dimensional stability, and resistance to humidity/moisture.
Layer Height: 0.2 mm.
Infill Density: 20%. Provides necessary structural strength.
Wall/Perimeter Count: 4. Crucial for strong seams for assembly.
Supports: Supports are REQUIRED for parts with internal overhangs or magnet recesses.

SLA/Resin Settings (Recommended for Detail)

Material: ABS-Like UV Resin (ensure structural integrity).
Layer Height: 0.05 mm or finer.

Supports: Supports are REQUIRED for parts with internal overhangs or magnet recesses.

Calibration: Dimensional accuracy is key for component fit.

Important: Dimensional calibration is crucial for accurate assembly. A snug fit is required before gluing sections together

Assembly & Installation

🛠️ Preparation & Post-Processing Steps

This product requires multiple mandatory preparation steps in the slicer, assembly with a pump, and a mandatory painting process.

Assembly (Glue Required)

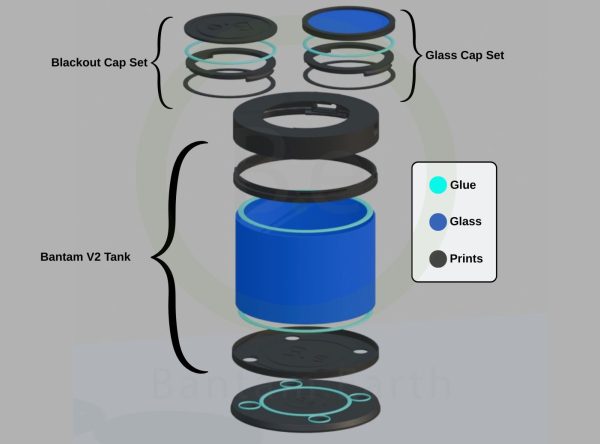

Reference Diagram: Consult the Exploded Diagram in the image gallery for the correct sequence and orientation of all parts. Remember to remove preinstalled support from the glass trim before installing.
Part Joining: Glue all large structural components together (including trims, sponges, caps, & base trim) using Max Strength Construction Adhesive to form the main frame.
Panel Installation: Glue the clear acrylic or polycarbonate panels into their designated slots.

Curing (CRITICAL)

Cure Time: Allow a MANDATORY 48-HOUR CURE TIME in a well-ventilated area to prevent white residue (“fogging”) on the enclosure walls.

Cleaning (CRITICAL)

Before introducing the assembled habitat to animals or plants, wash it thoroughly with hot, non-soapy water. A final thorough rinse is mandatory.

📦 Required External Tools

The following materials are required to complete the functional connection system and are not included with the STL files.

Max Strength Construction Adhesive, Clear: This is the safest, strongest, clearest glue for vivarium use.
Clear Acrylic Tubing 115mm (ID) x 120mm (OD): The height of the pipe can be cut to your preference (Mine are 6 inches tall). If another diameter pipe is used, remember to size up the STL files to match (I typically will print only the base trim and test fit until I figure out the exact percentage increase and print the rest at that scale).
Clear Acrylic Circle Disc: These are used for the Glass Tops.
Bantamarium Logo Tag & Holder Set: These are the STL files needed for the front Bantamarium logo.
Bantamarium Port Plug & Plug Cap: These are the STL files needed to close off the side ports on the lid and base.
Bantam Species-Specific Substrates: We offer our own selection of species-specific soils and other substrates to support our shop.

Changelog

📝 Changelog

Keeping our designs current and addressing user feedback is a priority. This tab will track all official updates to the STL files found in this download.

Version V1.0

Date: 12/13/2025

Notes: Initial Release. Clean STL files provided for the complete multi-part habitat kit. Assembly required.
