Bantam V2 Light Cap Set

Take full control over your habitat’s lighting and access with the Bantamarium V2 Cap Set! This modular download includes three distinct, interchangeable caps designed to snap perfectly into any Bantam V2 Lid. This set features the Glass Cap for clear top viewing, the Blackout Cap for maximum security and humidity retention, and the Light Cap for integrated internal illumination.

These files are optimized to lie flat in the correct orientation for a 100% support-free print, allowing you to go straight from download to build plate.

Download This STL File

(Non-Commercial License)

—– OR —–

Memberships starting at $14/month

-Unlimited Downloads

-Commercial License Available

-Cancel Anytime

_
Get Unlimited Downloads

Share This Design:

Recommended Settings

Assembly & Installation

Changelog

Recommended Settings

⚙️ Recommended Print Settings

Dimensional accuracy is critical for these caps to prevent leaks. Water-safe materials are mandatory.

FDM/Filament Settings (Recommended for Structure & Size)

Material: PETG or ABS/ASA are highly recommended due to their resistance to water contact and durability requirements.
Layer Height: 0.2 mm or 0.16 mm. Use a finer layer height for better threading/fitting surfaces.
Infill Density: 20-30%. Necessary for structural integrity under hose pressure.
Wall/Perimeter Count: 4. Crucial for strength and preventing porosity.
Supports (CRITICAL): Supports are NOT REQUIRED.

SLA/Resin Settings (Recommended for Detail)

Material: ABS-Like UV Resin (ensure it’s structurally sound).
Layer Height: 0.05 mm or finer.
Supports: SUPPORTS ARE NOT REQUIRED.
Calibration: Ensure your resin printer is calibrated for minimal dimensional shrinkage.

Important: Dimensional calibration is essential! We recommend printing a test piece before batch printing to ensure everything fits tightly.

Assembly & Installation

🛠️ Preparation & Post-Processing Steps

These parts require proper cleaning and careful assembly to prevent leaks.

Slicer Preparation

Supports: SUPPORTS ARE NOT REQUIRED.
Hollowing: Not required. Print solid.

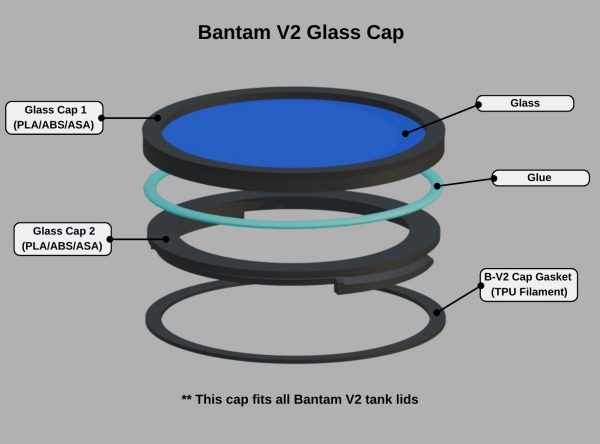

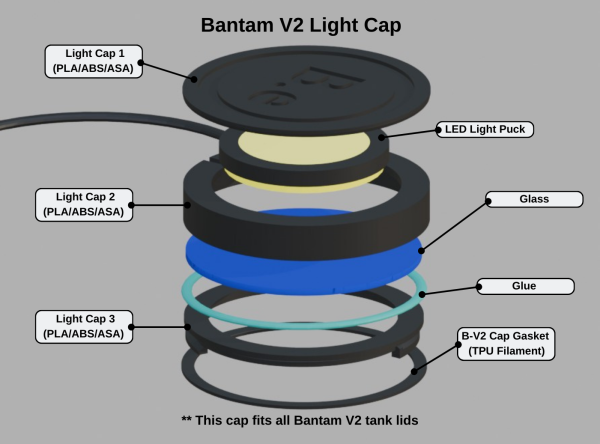

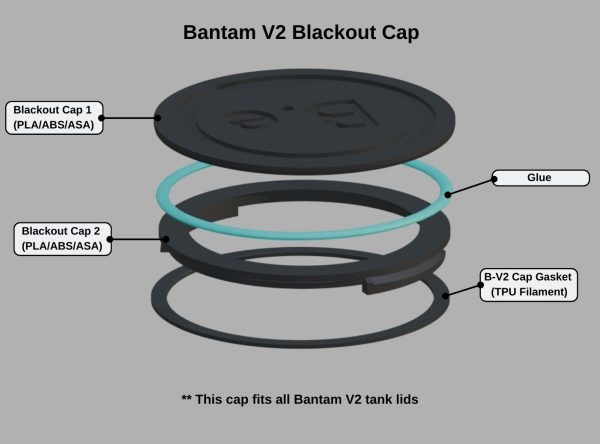

Assembly: Follow diagrams for the assembly guide and glue template:

📦 Required External Tools

The following components fit into this base but are not included with the STL file.

Max Strength Construction Adhesive, Clear: This is the safest, strongest, clearest glue for vivarium use.
3-inch Circle Glass Sheets: This is needed for the Light and Glass Caps.
RGB USB Puck Light: This is the light used for the Light Cap.

Changelog

📝 Changelog

Keeping our designs current and addressing user feedback is a priority. This tab will track all official updates to the STL files found in this download.

Bantam V2 Light Cap Set

Download This STL File

⚙️ Recommended Print Settings

FDM/Filament Settings (Recommended for Structure & Size)

🛠️ Preparation & Post-Processing Steps

Slicer Preparation

📦 Required External Tools

📝 Changelog

Version V1.0
